Setup Wireshark op Linux Mint 22

Wireshark is 's werelds meest gebruikte netwerkprotocol-analyzer, een tool waarmee je het digitale verkeer op een netwerk tot in het kleinste detail kunt bekijken en ontleden. Het programma vangt datapakketjes op die over het netwerk verzonden worden ("capturing") en vertaalt deze ruwe binaire data naar een leesbaar formaat, zodat je precies kunt zien wie met wie communiceert en welke informatie er wordt uitgewisseld.

Vereisten

Demo

-- IN PROGRESS --

  • sudo add-apt-repository ppa:wireshark-dev/stable
  • sudo apt update
  • sudo apt install wireshark

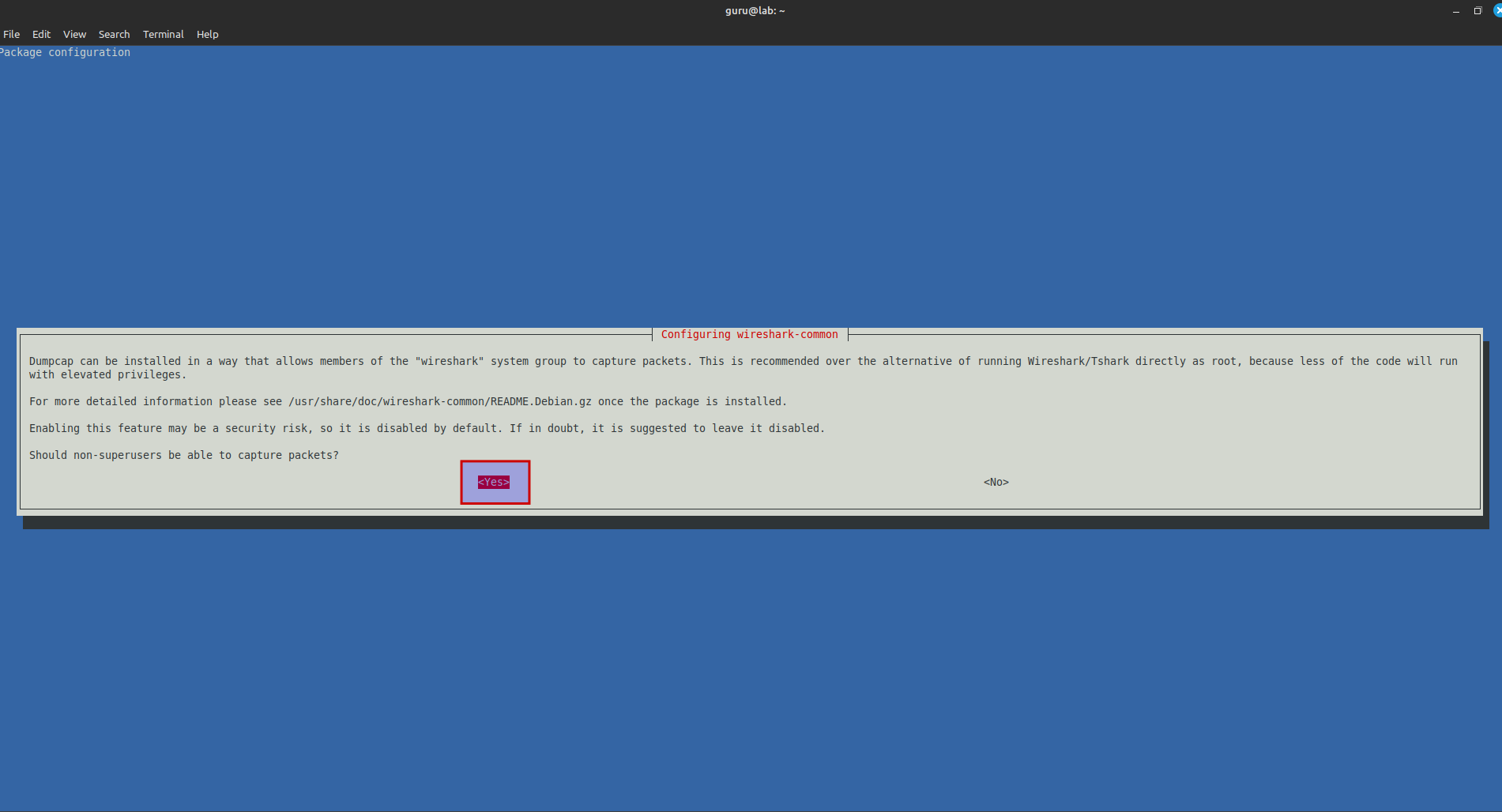

  • YES antwoorden om als non-root user te kunnen capturen

Update package list

1
sudo apt update

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
guru@lab:~$ sudo apt update
[sudo] password for guru:
Ign:1 https://linuxmint-packages.mirror.liteserver.nl victoria InRelease
Hit:2 http://archive.ubuntu.com/ubuntu jammy InRelease
Hit:3 https://linuxmint-packages.mirror.liteserver.nl victoria Release
Hit:4 http://security.ubuntu.com/ubuntu jammy-security InRelease
Hit:5 http://archive.ubuntu.com/ubuntu jammy-updates InRelease
Hit:6 http://archive.ubuntu.com/ubuntu jammy-backports InRelease
Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
All packages are up to date.
guru@lab:~$

Install Wireshark

1
sudo apt install wireshark -y

Let's allow non-superusers to capture packets.

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
guru@lab:~$ sudo apt install wireshark -y
Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
The following additional packages will be installed:
libbcg729-0 libminizip1 libqt5multimedia5 libqt5multimedia5-plugins libqt5multimediagsttools5 libqt5multimediawidgets5 libqt5printsupport5 libsmi2ldbl libwireshark-data libwireshark15 libwiretap12 libwsutil13 wireshark-common
wireshark-qt
Suggested packages:
snmp-mibs-downloader geoipupdate geoip-database-extra libjs-leaflet libjs-leaflet.markercluster wireshark-doc
The following NEW packages will be installed:
libbcg729-0 libminizip1 libqt5multimedia5 libqt5multimedia5-plugins libqt5multimediagsttools5 libqt5multimediawidgets5 libqt5printsupport5 libsmi2ldbl libwireshark-data libwireshark15 libwiretap12 libwsutil13 wireshark
wireshark-common wireshark-qt
0 upgraded, 15 newly installed, 0 to remove and 0 not upgraded.
Need to get 27,3 MB of archives.
After this operation, 131 MB of additional disk space will be used.
Get:1 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libbcg729-0 amd64 1.1.1-2 [32,9 kB]
Get:2 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libminizip1 amd64 1.1-8build1 [20,2 kB]
Get:3 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libqt5multimedia5 amd64 5.15.3-1 [320 kB]
Get:4 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libqt5multimediawidgets5 amd64 5.15.3-1 [42,6 kB]
Get:5 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libqt5multimediagsttools5 amd64 5.15.3-1 [112 kB]
Get:6 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libqt5multimedia5-plugins amd64 5.15.3-1 [178 kB]
Get:7 http://archive.ubuntu.com/ubuntu jammy-updates/universe amd64 libqt5printsupport5 amd64 5.15.3+dfsg-2ubuntu0.2 [214 kB]
Get:8 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libsmi2ldbl amd64 0.4.8+dfsg2-16 [100 kB]
Get:9 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libwireshark-data all 3.6.2-2 [1.647 kB]
Get:10 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libwsutil13 amd64 3.6.2-2 [99,2 kB]
Get:11 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libwiretap12 amd64 3.6.2-2 [255 kB]
Get:12 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libwireshark15 amd64 3.6.2-2 [19,5 MB]
Get:13 http://archive.ubuntu.com/ubuntu jammy/universe amd64 wireshark-common amd64 3.6.2-2 [473 kB]
Get:14 http://archive.ubuntu.com/ubuntu jammy/universe amd64 wireshark-qt amd64 3.6.2-2 [4.269 kB]
Get:15 http://archive.ubuntu.com/ubuntu jammy/universe amd64 wireshark amd64 3.6.2-2 [4.992 B]
Fetched 27,3 MB in 2s (13,0 MB/s)
Preconfiguring packages ...
Selecting previously unselected package libbcg729-0:amd64.
(Reading database ... 560791 files and directories currently installed.)
Preparing to unpack .../00-libbcg729-0_1.1.1-2_amd64.deb ...
Unpacking libbcg729-0:amd64 (1.1.1-2) ...
Selecting previously unselected package libminizip1:amd64.
Preparing to unpack .../01-libminizip1_1.1-8build1_amd64.deb ...
Unpacking libminizip1:amd64 (1.1-8build1) ...
Selecting previously unselected package libqt5multimedia5:amd64.
Preparing to unpack .../02-libqt5multimedia5_5.15.3-1_amd64.deb ...
Unpacking libqt5multimedia5:amd64 (5.15.3-1) ...
Selecting previously unselected package libqt5multimediawidgets5:amd64.
Preparing to unpack .../03-libqt5multimediawidgets5_5.15.3-1_amd64.deb ...
Unpacking libqt5multimediawidgets5:amd64 (5.15.3-1) ...
Selecting previously unselected package libqt5multimediagsttools5:amd64.
Preparing to unpack .../04-libqt5multimediagsttools5_5.15.3-1_amd64.deb ...
Unpacking libqt5multimediagsttools5:amd64 (5.15.3-1) ...
Selecting previously unselected package libqt5multimedia5-plugins:amd64.
Preparing to unpack .../05-libqt5multimedia5-plugins_5.15.3-1_amd64.deb ...
Unpacking libqt5multimedia5-plugins:amd64 (5.15.3-1) ...
Selecting previously unselected package libqt5printsupport5:amd64.
Preparing to unpack .../06-libqt5printsupport5_5.15.3+dfsg-2ubuntu0.2_amd64.deb ...
Unpacking libqt5printsupport5:amd64 (5.15.3+dfsg-2ubuntu0.2) ...
Selecting previously unselected package libsmi2ldbl:amd64.
Preparing to unpack .../07-libsmi2ldbl_0.4.8+dfsg2-16_amd64.deb ...
Unpacking libsmi2ldbl:amd64 (0.4.8+dfsg2-16) ...
Selecting previously unselected package libwireshark-data.
Preparing to unpack .../08-libwireshark-data_3.6.2-2_all.deb ...
Unpacking libwireshark-data (3.6.2-2) ...
Selecting previously unselected package libwsutil13:amd64.
Preparing to unpack .../09-libwsutil13_3.6.2-2_amd64.deb ...
Unpacking libwsutil13:amd64 (3.6.2-2) ...
Selecting previously unselected package libwiretap12:amd64.
Preparing to unpack .../10-libwiretap12_3.6.2-2_amd64.deb ...
Unpacking libwiretap12:amd64 (3.6.2-2) ...
Selecting previously unselected package libwireshark15:amd64.
Preparing to unpack .../11-libwireshark15_3.6.2-2_amd64.deb ...
Unpacking libwireshark15:amd64 (3.6.2-2) ...
Selecting previously unselected package wireshark-common.
Preparing to unpack .../12-wireshark-common_3.6.2-2_amd64.deb ...
Unpacking wireshark-common (3.6.2-2) ...
Selecting previously unselected package wireshark-qt.
Preparing to unpack .../13-wireshark-qt_3.6.2-2_amd64.deb ...
Unpacking wireshark-qt (3.6.2-2) ...
Selecting previously unselected package wireshark.
Preparing to unpack .../14-wireshark_3.6.2-2_amd64.deb ...
Unpacking wireshark (3.6.2-2) ...
Setting up libbcg729-0:amd64 (1.1.1-2) ...
Setting up libminizip1:amd64 (1.1-8build1) ...
Setting up libqt5multimedia5:amd64 (5.15.3-1) ...
Setting up libqt5printsupport5:amd64 (5.15.3+dfsg-2ubuntu0.2) ...
Setting up libsmi2ldbl:amd64 (0.4.8+dfsg2-16) ...
Setting up libwsutil13:amd64 (3.6.2-2) ...
Setting up libwiretap12:amd64 (3.6.2-2) ...
Setting up libqt5multimediawidgets5:amd64 (5.15.3-1) ...
Setting up libwireshark-data (3.6.2-2) ...
Setting up libqt5multimediagsttools5:amd64 (5.15.3-1) ...
Setting up libqt5multimedia5-plugins:amd64 (5.15.3-1) ...
Setting up libwireshark15:amd64 (3.6.2-2) ...
Setting up wireshark-common (3.6.2-2) ...
Setting up wireshark-qt (3.6.2-2) ...
Setting up wireshark (3.6.2-2) ...
Processing triggers for libc-bin (2.35-0ubuntu3.1) ...
Processing triggers for man-db (2.10.2-1) ...
Processing triggers for shared-mime-info (2.1-2) ...
Processing triggers for mailcap (3.70+nmu1ubuntu1) ...
Processing triggers for desktop-file-utils (0.26+mint3+victoria) ...
Processing triggers for hicolor-icon-theme (0.17-2) ...
Processing triggers for gnome-menus (3.36.0-1ubuntu3) ...
guru@lab:~$

Fix stuff

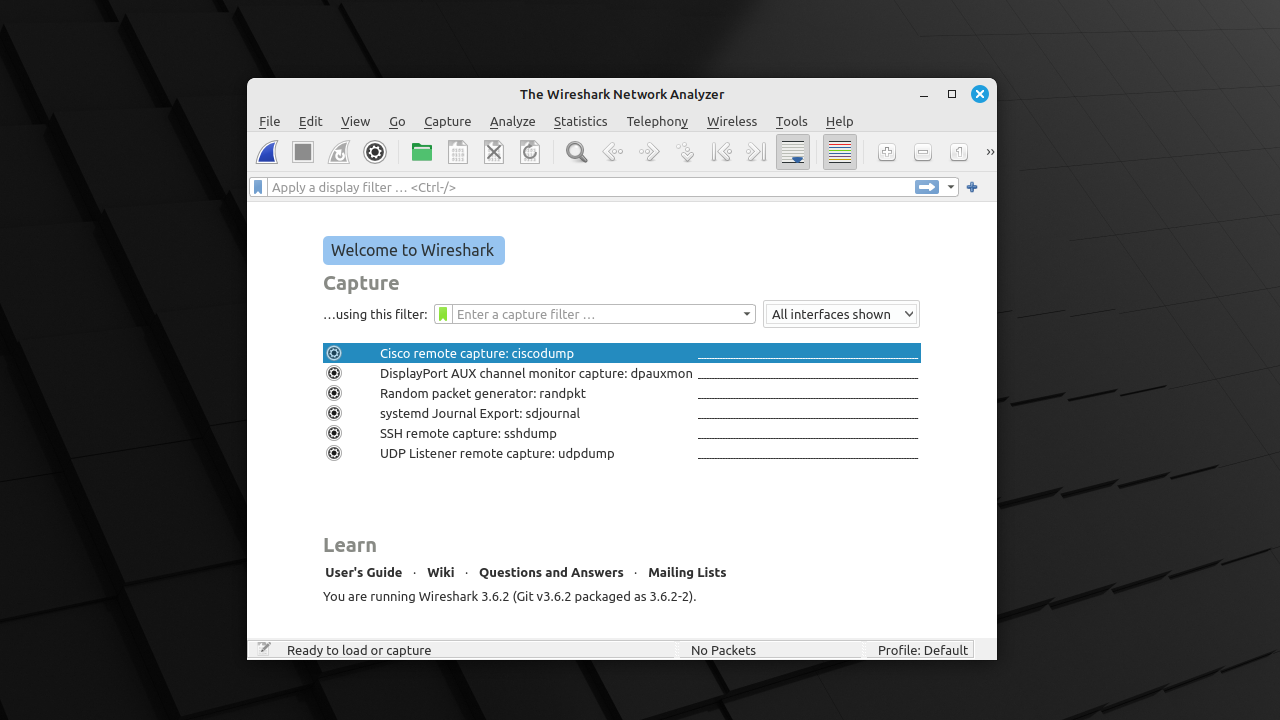

When you start Wireshark, no interfaces are listed (bug?)

Let's add the user "guru" to the existing group "wireshark".

1
sudo usermod -a -G wireshark guru

1
2
3
guru@lab:~$ sudo usermod -a -G wireshark guru
[sudo] password for guru:
guru@lab:~$

Log off and log in. Start Wireshark. The network card(s) should be listed now.
