Setup Packet Tracer 8.2.2 op Linux Mint 22¶

Cisco Packet Tracer is een gratis netwerksimulatietool ontwikkeld door Cisco Systems, waarmee je virtuele netwerktopologieën kunnen ontwerpen, bouwen, configureren en testen in een risicovrije omgeving. Het je in staat om met diverse netwerkapparaten zoals routers en switches te experimenteren, netwerkprotocollen te simuleren en problemen op te lossen, zonder de noodzaak van dure fysieke hardware.

Vereisten¶

een PC met Linux Mint 22
internet verbinding

VDAB cursisten

Gebruik het Packet Tracer installatie-bestand CiscoPacketTracer822_amd64_signed.deb van in de Download folder in Google Classroom.

Demo¶

Open Terminal¶

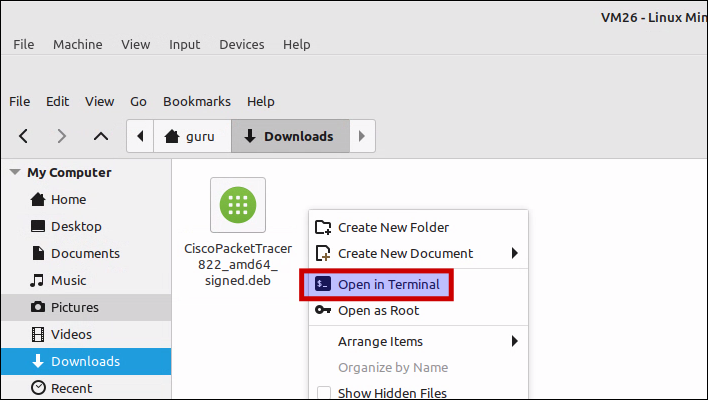

Start de bestandsbeheerder Nemo
Selecteer de map Downloads
Klik met de rechtermuisknop op een lege ruimte en selecteer Openen in Terminal

Download en installeer manueel een dependency¶

Wegens deze bug moet je eerst manueel een pakket installeren, dat niet meer in de Linux Mint 22 (Ubuntu) repository zit.

guru@hp:~/Downloads$_output

wget https://nl.archive.ubuntu.com/ubuntu/pool/universe/m/mesa/libgl1-mesa-glx_23.0.4-0ubuntu1~22.04.1_amd64.deb
sudo apt install ./libgl1-mesa-glx_23.0.4-0ubuntu1~22.04.1_amd64.deb

guru@hp:~/Downloads$ wget https://nl.archive.ubuntu.com/ubuntu/pool/universe/m/mesa/libgl1-mesa-glx_23.0.4-0ubuntu1~22.04.1_amd64.deb
--2025-08-29 16:36:46--  https://nl.archive.ubuntu.com/ubuntu/pool/universe/m/mesa/libgl1-mesa-glx_23.0.4-0ubuntu1~22.04.1_amd64.deb
Resolving nl.archive.ubuntu.com (nl.archive.ubuntu.com)... 213.136.12.213, 2001:7b8:3:37::21:3
Connecting to nl.archive.ubuntu.com (nl.archive.ubuntu.com)|213.136.12.213|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 5584 (5,5K) [application/vnd.debian.binary-package]
Saving to: ‘libgl1-mesa-glx_23.0.4-0ubuntu1~22.04.1_amd64.deb’

libgl1-mesa-glx_23.0.4-0ubuntu1~22.04.1_amd64.deb           100%[=========================================================================================================================================>]   5,45K  --.-KB/s    in 0s

    2025-08-29 16:36:47 (227 MB/s) - ‘libgl1-mesa-glx_23.0.4-0ubuntu1~22.04.1_amd64.deb’ saved [5584/5584]

guru@hp:~/Downloads$ sudo apt install ./libgl1-mesa-glx_23.0.4-0ubuntu1~22.04.1_amd64.deb
[sudo] password for guru:
Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
Note, selecting 'libgl1-mesa-glx' instead of './libgl1-mesa-glx_23.0.4-0ubuntu1~22.04.1_amd64.deb'
The following NEW packages will be installed:
  libgl1-mesa-glx
0 upgraded, 1 newly installed, 0 to remove and 0 not upgraded.
Need to get 0 B/5.584 B of archives.
After this operation, 74,8 kB of additional disk space will be used.
Get:1 /home/guru/Downloads/libgl1-mesa-glx_23.0.4-0ubuntu1~22.04.1_amd64.deb libgl1-mesa-glx amd64 23.0.4-0ubuntu1~22.04.1 [5.584 B]
Selecting previously unselected package libgl1-mesa-glx:amd64.
(Reading database ... 531896 files and directories currently installed.)
Preparing to unpack .../libgl1-mesa-glx_23.0.4-0ubuntu1~22.04.1_amd64.deb ...
Unpacking libgl1-mesa-glx:amd64 (23.0.4-0ubuntu1~22.04.1) ...
Setting up libgl1-mesa-glx:amd64 (23.0.4-0ubuntu1~22.04.1) ...
N: Download is performed unsandboxed as root as file '/home/guru/Downloads/libgl1-mesa-glx_23.0.4-0ubuntu1~22.04.1_amd64.deb' couldn't be accessed by user '_apt'. - pkgAcquire::Run (13: Permission denied)

Installeer Packet Tracer¶

Installeer het .deb-pakket en geef het relatieve pad naar het pakketbestand op. APT herkent en installeert het pakket, inclusief eventuele afhankelijkheden.

guru@hp:~/Downloads$_output

sudo apt install ./CiscoPacketTracer822_amd64_signed.deb -y

guru@hp:~/Downloads$ sudo apt install ./CiscoPacketTracer822_amd64_signed.deb -y
Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
Note, selecting 'packettracer' instead of './CiscoPacketTracer822_amd64_signed.deb'
The following additional packages will be installed:
  libpthread-stubs0-dev libxau-dev libxcb-xinerama0-dev libxcb1-dev libxdmcp-dev x11proto-dev xorg-sgml-doctools
Suggested packages:
  libxcb-doc
The following NEW packages will be installed:
  libpthread-stubs0-dev libxau-dev libxcb-xinerama0-dev libxcb1-dev libxdmcp-dev packettracer x11proto-dev xorg-sgml-doctools
0 upgraded, 8 newly installed, 0 to remove and 0 not upgraded.
Need to get 746 kB/284 MB of archives.
After this operation, 2.676 kB of additional disk space will be used.
Get:1 http://archive.ubuntu.com/ubuntu noble/main amd64 libpthread-stubs0-dev amd64 0.4-1build3 [4.746 B]
Get:2 http://archive.ubuntu.com/ubuntu noble/main amd64 xorg-sgml-doctools all 1:1.11-1.1 [10,9 kB]
Get:3 http://archive.ubuntu.com/ubuntu noble/main amd64 x11proto-dev all 2023.2-1 [602 kB]
Get:4 http://archive.ubuntu.com/ubuntu noble/main amd64 libxau-dev amd64 1:1.0.9-1build6 [9.570 B]
Get:5 http://archive.ubuntu.com/ubuntu noble/main amd64 libxdmcp-dev amd64 1:1.1.3-0ubuntu6 [26,5 kB]
Get:6 http://archive.ubuntu.com/ubuntu noble/main amd64 libxcb1-dev amd64 1.15-1ubuntu2 [85,8 kB]
Get:7 http://archive.ubuntu.com/ubuntu noble/main amd64 libxcb-xinerama0-dev amd64 1.15-1ubuntu2 [6.034 B]
Get:8 /home/guru/Downloads/CiscoPacketTracer822_amd64_signed.deb packettracer amd64 8.2.2 [283 MB]
Fetched 746 kB in 2s (486 kB/s)
Preconfiguring packages ...
Selecting previously unselected package libpthread-stubs0-dev:amd64.
(Reading database ... 531784 files and directories currently installed.)
Preparing to unpack .../0-libpthread-stubs0-dev_0.4-1build3_amd64.deb ...
Unpacking libpthread-stubs0-dev:amd64 (0.4-1build3) ...
Selecting previously unselected package xorg-sgml-doctools.
Preparing to unpack .../1-xorg-sgml-doctools_1%3a1.11-1.1_all.deb ...
Unpacking xorg-sgml-doctools (1:1.11-1.1) ...
Selecting previously unselected package x11proto-dev.
Preparing to unpack .../2-x11proto-dev_2023.2-1_all.deb ...
Unpacking x11proto-dev (2023.2-1) ...
Selecting previously unselected package libxau-dev:amd64.
Preparing to unpack .../3-libxau-dev_1%3a1.0.9-1build6_amd64.deb ...
Unpacking libxau-dev:amd64 (1:1.0.9-1build6) ...
Selecting previously unselected package libxdmcp-dev:amd64.
Preparing to unpack .../4-libxdmcp-dev_1%3a1.1.3-0ubuntu6_amd64.deb ...
Unpacking libxdmcp-dev:amd64 (1:1.1.3-0ubuntu6) ...
Selecting previously unselected package libxcb1-dev:amd64.
Preparing to unpack .../5-libxcb1-dev_1.15-1ubuntu2_amd64.deb ...
Unpacking libxcb1-dev:amd64 (1.15-1ubuntu2) ...
Selecting previously unselected package libxcb-xinerama0-dev:amd64.
Preparing to unpack .../6-libxcb-xinerama0-dev_1.15-1ubuntu2_amd64.deb ...
Unpacking libxcb-xinerama0-dev:amd64 (1.15-1ubuntu2) ...
Selecting previously unselected package packettracer.
Preparing to unpack .../7-CiscoPacketTracer822_amd64_signed.deb ...
Unpacking packettracer (8.2.2) ...
Setting up libpthread-stubs0-dev:amd64 (0.4-1build3) ...
Setting up xorg-sgml-doctools (1:1.11-1.1) ...
Processing triggers for man-db (2.12.0-4build2) ...
Processing triggers for shared-mime-info (2.4-4) ...
Processing triggers for sgml-base (1.31) ...
Setting up x11proto-dev (2023.2-1) ...
Setting up libxau-dev:amd64 (1:1.0.9-1build6) ...
Setting up libxdmcp-dev:amd64 (1:1.1.3-0ubuntu6) ...
Setting up libxcb1-dev:amd64 (1.15-1ubuntu2) ...
Setting up libxcb-xinerama0-dev:amd64 (1.15-1ubuntu2) ...
Setting up packettracer (8.2.2) ...
gtk-update-icon-cache: No theme index file.
N: Download is performed unsandboxed as root as file '/home/guru/Downloads/CiscoPacketTracer822_amd64_signed.deb' couldn't be accessed by user '_apt'. - pkgAcquire::Run (13: Permission denied)
guru@hp:~/Downloads$

License agreement¶

Lees de Software License Agreementen ga akkoord.

EULA terms¶

Accepteer de EULA voorwaarden.

Notice¶

Negeer de waarschuwing "Notice" aan het einde van de installatie. Alles is goed gegaan.

N: Download is performed unsandboxed as root as file '/home/guru/Downloads/CiscoPacketTracer822_amd64_signed.deb' couldn't be accessed by user '_apt'. - pkgAcquire::Run (13: Permission denied)
guru@hp:~/Downloads$

Activation link¶

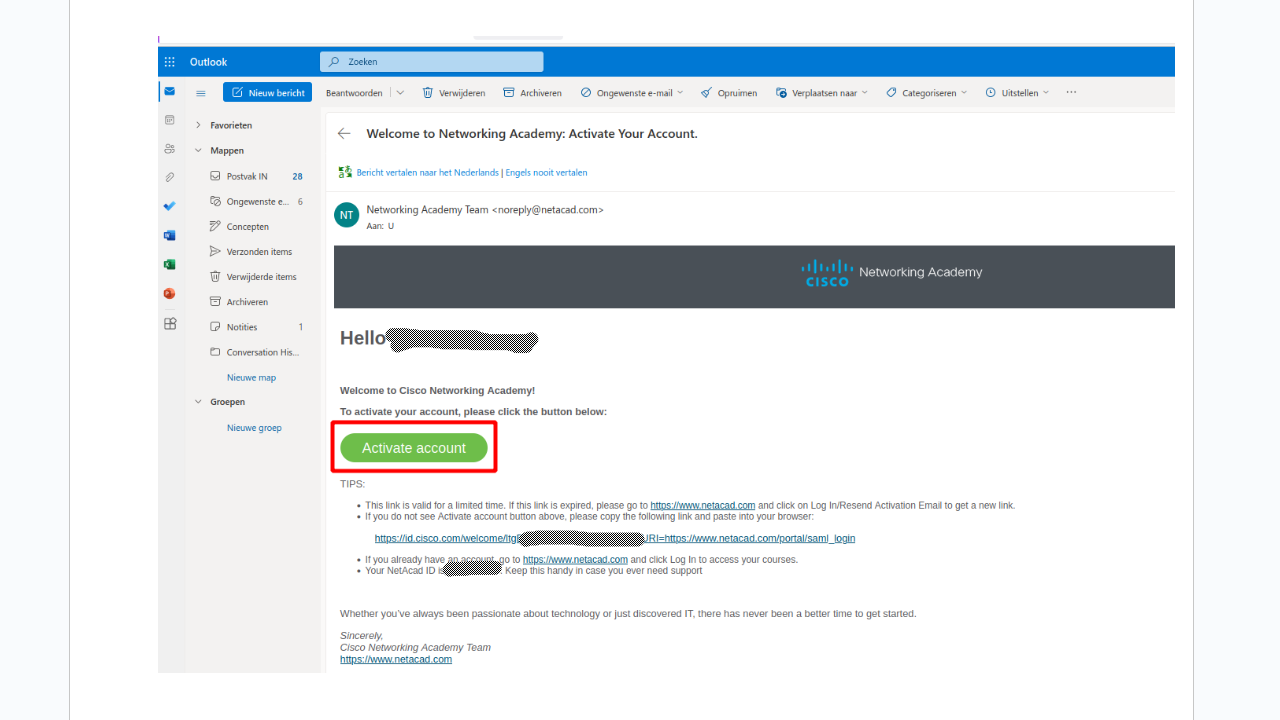

Lid van Cisco Network Academy? Je hebt als het goed is een activeringslink ontvangen in je privé-e-mail. Activeer je account. Mogelijk heb je dit al eerder gedaan. Sla deze stap dan over.

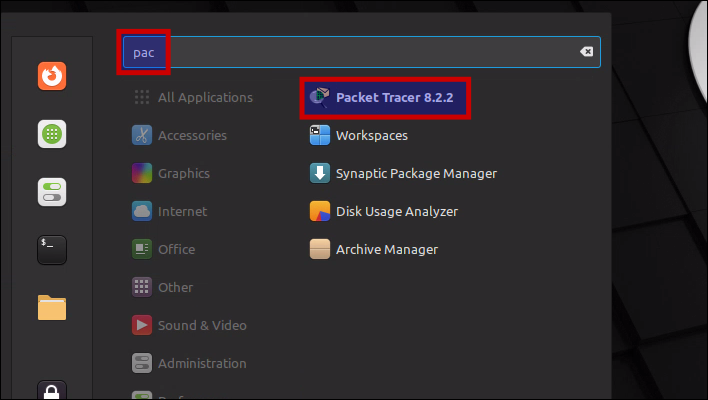

Selecteer "Menu" en begin met het typen van "pac". Start "PacketTracer 8.2.2".

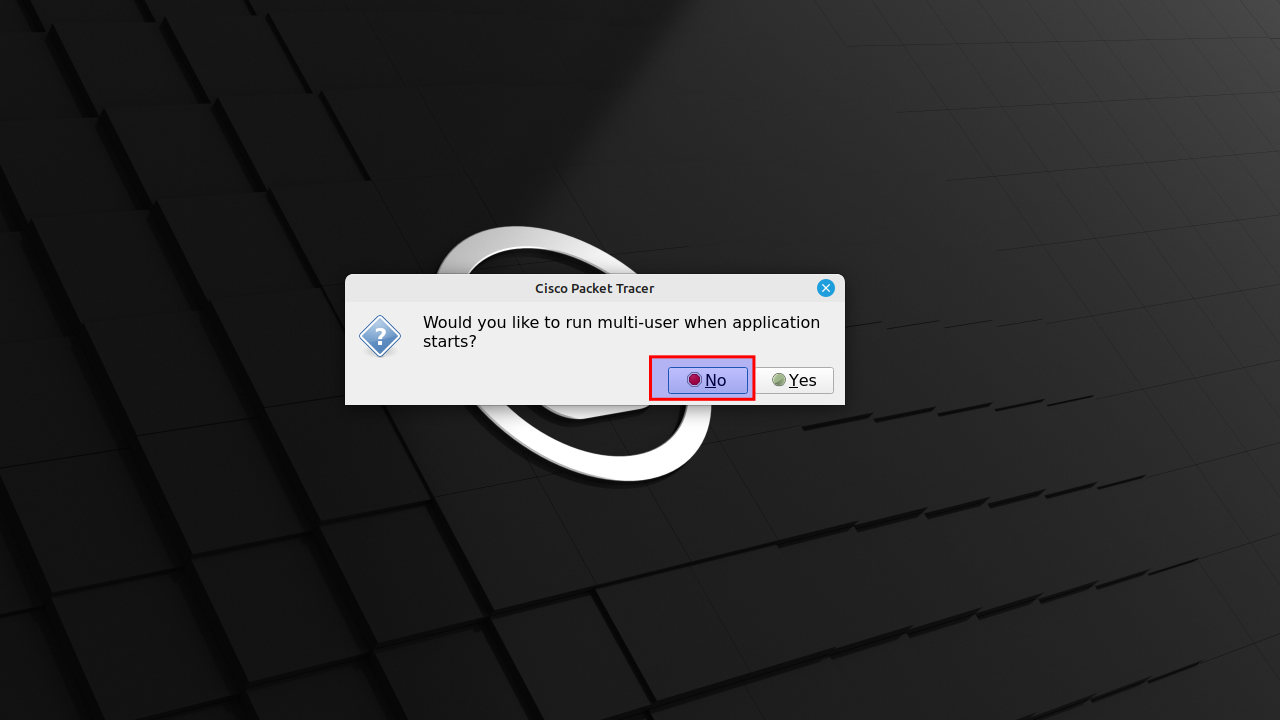

Multi-user¶

Antwoord "no".

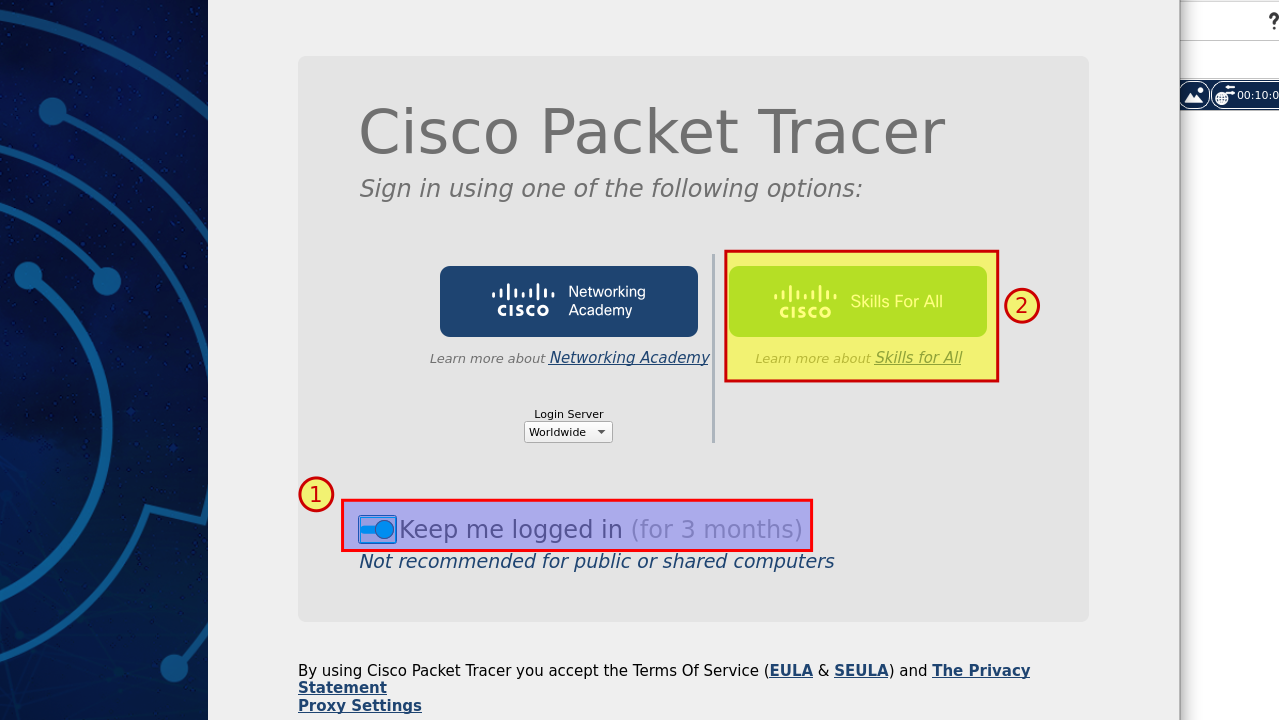

Kies eerst Keep me logged in (for 3 months)
Selecteer vervolgens Skills For All. Je kunt de optie Network Academy op dit moment niet gebruiken. Na het samenvoegen van 'netacad.com' en 'skillsforall.com' is de Packet Tracer-applicatie nog niet goed ingesteld.

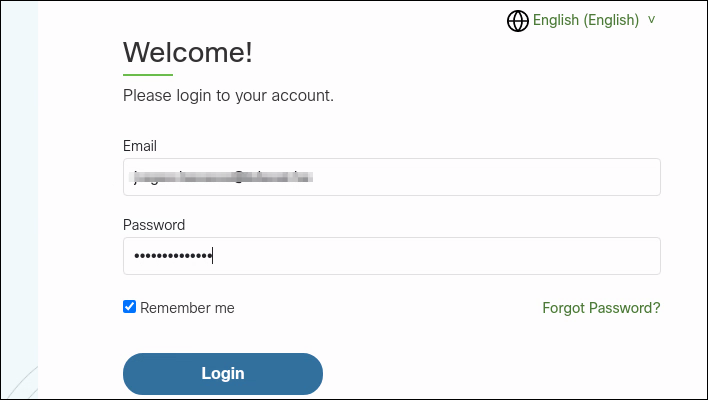

Vul je privé-e-mailadres in. Zet een vinkje bij Remember me en klik op Login. Het wachtwoordveld verschijnt. Vul je wachtwoord in.

Font configuration¶

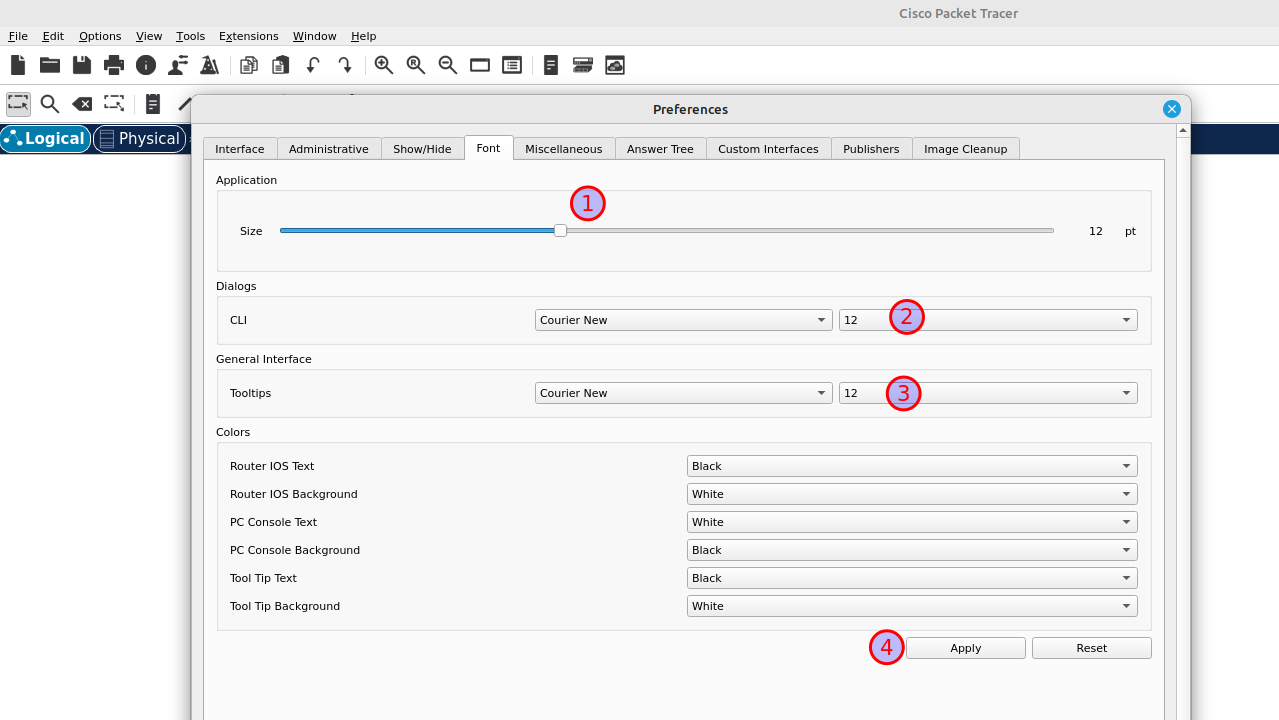

Persoonlijke voorkeur. Selecteer Options -> Preferences -> Font. Vergroot de lettergrootte naar 12 en klik op Apply. Sluit vervolgens het venster.
