Access a Cisco device in ROMMON-mode

Prereqs

  • a PC (BIOS/UEFI) running Linux Mint 21
    • minicom terminal emulation software
  • a console cable
  • a Cisco 2960 24TT-L or 24TC-L Plus switch
  • a Cisco 1941 router

Cisco 2960 switch

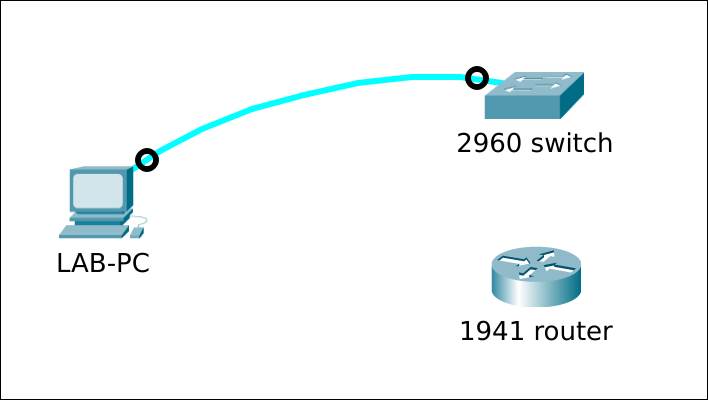

Setup

From IOS

By default, the switch will boot the configured boot image automatically, without waiting for user input.

1
2
3
4
5
6
7
Switch#show boot
BOOT path-list      : flash:c2960-lanbasek9-mz.150-2.SE11.bin
Config file         : flash:/config.text
Private Config file : flash:/private-config.text
Enable Break        : yes
Manual Boot         : no
...

Bypass the normal boot process and enter ROMMON mode directly upon the next reboot.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
Switch#configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.
Switch(config)#boot manual
Switch(config)#end

Switch#show boot
BOOT path-list      : flash:c2960-lanbasek9-mz.150-2.SE11.bin
Config file         : flash:/config.text
Private Config file : flash:/private-config.text
Enable Break        : yes
Manual Boot         : yes
...

Switch#reload

System configuration has been modified. Save? [yes/no]: no      <----- if asked
Proceed with reload? [confirm]                                  <----- press <Enter>

*Mar  1 16:21:22.615: %SYS-5-RELOAD: Reload requested by console. Reload Reason: Reload command.
...

We're in ROMMON-mode.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
Boot Sector Filesystem (bs) installed, fsid: 2
Base ethernet MAC Address: bc:f1:f2:59:06:00
Xmodem file system is available.
The password-recovery mechanism is disabled.
Initializing Flash...
flashfs[0]: 6 files, 3 directories
flashfs[0]: 0 orphaned files, 0 orphaned directories
flashfs[0]: Total bytes: 65544192
flashfs[0]: Bytes used: 16074240
flashfs[0]: Bytes available: 49469952
flashfs[0]: flashfs fsck took 18 seconds.
...done Initializing Flash.
done.

The system is not configured to boot automatically.  The
following command will finish loading the operating system
software:

    boot


switch:

To "undo" the manual boot and return to IOS, you have 2 options. Either

  • first unset the variable from within ROMMON and boot into IOS
  • boot into IOS and unset the boot variable from within IOS
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
# option1
switch: set
!=-
...
MANUAL_BOOT=yes
...
switch: unset MANUAL_BOOT
switch: boot
Loading "flash:c2960-lanbasek9-mz.150-2.SE11.bin"...@@@@@@@@
...
Switch#

# option2
switch: boot
Loading "flash:c2960-lanbasek9-mz.150-2.SE11.bin"...@@@@@@@@
...

Switch#configure terminal
Switch(config)#no boot manual
Switch(config)#end
Switch#

Missing or corrupt IOS

Let's simulate a non-working IOS by "accidently" erasing the "flash" filesystem. Restart the switch afterwards.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Switch#erase flash:
Erasing the flash filesystem will remove all files! Continue? [confirm]
flashfs[2]: 0 files, 1 directories
flashfs[2]: 0 orphaned files, 0 orphaned directories
flashfs[2]: Total bytes: 65544192
flashfs[2]: Bytes used: 1024
flashfs[2]: Bytes available: 65543168
flashfs[2]: flashfs fsck took 25 seconds.
Erase of flash: complete

Switch#dir flash:
Directory of flash:/

No files in directory

65544192 bytes total (65543168 bytes free)

Switch#reload

System configuration has been modified. Save? [yes/no]: no          <----- if asked
Proceed with reload? [confirm]                                      <----- press <Enter>

*Mar  1 00:28:22.946: %SYS-5-RELOAD: Reload requested by console. Reload Reason: Reload command.
...

The BOOT environment variable is still set to boot c2960-lanbasek9-mz.150-2.SE11.bin but it's not there. The switch will not be able to boot and will enter ROMMON-mode automatically.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
Welcome to minicom 2.8

OPTIONS: I18n
Port /dev/ttyUSB0, 09:36:24

Press CTRL-A Z for help on special keys


Boot Sector Filesystem (bs) installed, fsid: 2
Base ethernet MAC Address: bc:f1:f2:59:06:00
Xmodem file system is available.
The password-recovery mechanism is enabled.                     ---> or "disabled"
Initializing Flash...
flashfs[0]: 3 files, 1 directories
flashfs[0]: 0 orphaned files, 0 orphaned directories
flashfs[0]: Total bytes: 65544192
flashfs[0]: Bytes used: 12800
flashfs[0]: Bytes available: 65531392
flashfs[0]: flashfs fsck took 18 seconds.
...done Initializing Flash.
done.
Loading "flash:c2960-lanbasek9-mz.150-2.SE11.bin"...flash:c2960-lanbasek9-mz.150-2.SE11.bin: no such file or directory

Error loading "flash:c2960-lanbasek9-mz.150-2.SE11.bin"

Interrupt within 5 seconds to abort boot process.
Boot process failed...

The system is unable to boot automatically.  The BOOT
environment variable needs to be set to a bootable
image.


switch:

To be able to boot again, you have to reinstall IOS.

Break sequence

  • If you have access to a working IOS, verify if the break sequence mechanism is enabled or not. If not, enable it.
  • If you do not have access to a working IOS, you can only "try" if the break sequence works. If not, you have to use the "cold start" method.
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
Switch#show boot | include Break
Enable Break        : no

Switch#configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.
Switch(config)#boot enable-break
Switch(config)#end

Switch#show boot | include Break
Enable Break        : yes

Power cycle the switch or "reload" from within a running IOS. Immediately after the switch starts booting (within the first X seconds), send the break sequence from your terminal emulator. For Minicom, press Ctrl + A then F. The switch should respond by stopping the boot process and entering ROMMON mode, indicated by the switch: prompt.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
Switch#reload
Proceed with reload? [confirm]

*Mar  1 00:13:45.539: %SYS-5-RELOAD: Reload requested by console. Reload Reason: Reload command.
Boot Sector Filesystem (bs) installed, fsid: 2
Base ethernet MAC Address: b0:c5:3c:26:a0:80
Xmodem file system is available.
### I sent the break signal about here ###
The password-recovery mechanism is enabled.
Initializing Flash...
flashfs[0]: filesystem check interrupted!
...done Initializing Flash.

The system has been interrupted, or encountered an error
during initialization of the flash filesystem.  The following
commands will initialize the flash filesystem, and finish
loading the operating system software:

    flash_init
    boot


switch:

Flash did not get initialized. You have to do that manually.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
switch: flash_init
Initializing Flash...
flashfs[0]: 2 files, 1 directories
flashfs[0]: 0 orphaned files, 0 orphaned directories
flashfs[0]: Total bytes: 65544192
flashfs[0]: Bytes used: 11835904
flashfs[0]: Bytes available: 53708288
flashfs[0]: flashfs fsck took 19 seconds.
...done Initializing Flash.

switch:

To return to IOS, just boot the switch.

1
2
3
4
switch: boot
Loading "flash:c2960-lanbasek9-mz.150-2.SE11.bin"...@@@@@@@
...
Switch#

Cold start

First disconnect the power cable from the switch. Minicom gives no output yet.

1
2
3
4
5
6
7
8
Welcome to minicom 2.8

OPTIONS: I18n
Port /dev/ttyUSB0, 13:50:27

Press CTRL-A Z for help on special keys

<blinking_cursor>

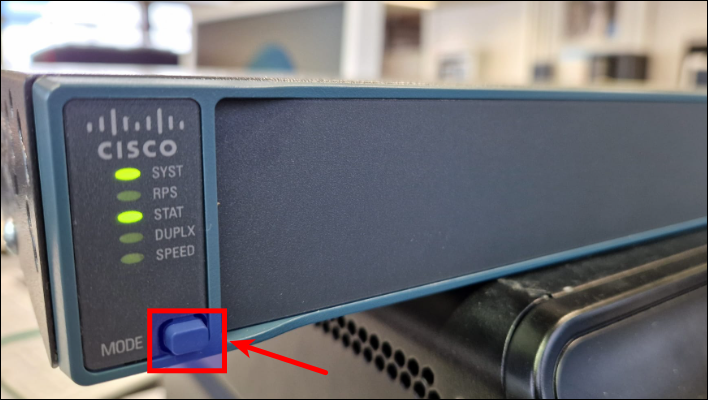

Now reconnect the power cable. The switch boots and while doing the POST, the SYST LED blinks green. This takes about X seconds. After POST, the blinking LED changes pattern. Press the Mode button once.

If the password recovery mechanism is enabled, you have to manually initialize flash.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
Welcome to minicom 2.8

OPTIONS: I18n
Port /dev/ttyUSB0, 09:44:08

Press CTRL-A Z for help on special keys


Boot Sector Filesystem (bs) installed, fsid: 2
Base ethernet MAC Address: bc:f1:f2:59:06:00
Xmodem file system is available.
The password-recovery mechanism is enabled.
Initializing Flash...
flashfs[0]: filesystem check interrupted!
...done Initializing Flash.

The system has been interrupted, or encountered an error
during initialization of the flash filesystem.  The following
commands will initialize the flash filesystem, and finish
loading the operating system software:

    flash_init
    boot


switch:

switch: flash_init
Initializing Flash...
flashfs[0]: 6 files, 3 directories
flashfs[0]: 0 orphaned files, 0 orphaned directories
flashfs[0]: Total bytes: 65544192
flashfs[0]: Bytes used: 16081408
flashfs[0]: Bytes available: 49462784
flashfs[0]: flashfs fsck took 19 seconds.
...done Initializing Flash.

switch:

If the password recovery mechanism is disabled, you will lose all the configuration. Flash is initialised for you. Choose "y" at the prompt.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
Welcome to minicom 2.8

OPTIONS: I18n
Port /dev/ttyUSB0, 09:44:08

Press CTRL-A Z for help on special keys


Boot Sector Filesystem (bs) installed, fsid: 2
Base ethernet MAC Address: bc:f1:f2:59:06:00
Xmodem file system is available.
The password-recovery mechanism is disabled.
Initializing Flash...
flashfs[0]: 6 files, 3 directories
flashfs[0]: 0 orphaned files, 0 orphaned directories
flashfs[0]: Total bytes: 65544192
flashfs[0]: Bytes used: 16131584
flashfs[0]: Bytes available: 49412608
flashfs[0]: flashfs fsck took 19 seconds.
...done Initializing Flash.
done.


The password-recovery mechanism has been triggered, but
is currently disabled.  Access to the boot loader prompt
through the password-recovery mechanism is disallowed at
this point.  However, if you agree to let the system be
reset back to the default system configuration, access
to the boot loader prompt can still be allowed.

Would you like to reset the system back to the default configuration (y/n)?y            ---> answer "y"

The system has been interrupted, and the config file
has been deleted.  The following command will finish
loading the operating system software:

boot


switch:

To return to IOS, just boot the switch.

1
2
3
4
switch: boot
Loading "flash:c2960-lanbasek9-mz.150-2.SE11.bin"...@@@@@@@
...
Switch#

Cisco 1941 router

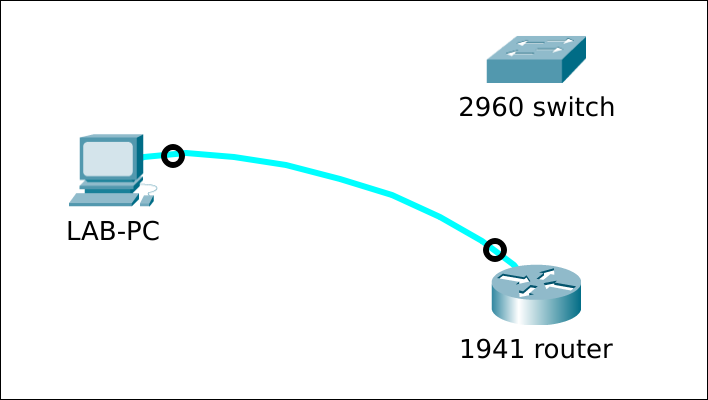

Setup

From IOS

The "show boot" command is not available on a Cisco 1941 router, like it is for a Cisco 2960 switch. You can still display the boot system commands in the running configuration, if any.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
# if no boot statement is present, an IOS will be searched on flash
Router#show running-config | include boot
boot-start-marker
boot-end-marker

# if a boot statement is present, that IOS will be booted
Router#configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.
Router(config)#boot system flash:c1900-universalk9-mz.SPA.157-3.M8.bin
Router(config)#end

Router#show running-config | include boot
boot-start-marker
boot system flash:c1900-universalk9-mz.SPA.157-3.M8.bin
boot-end-marker
Router#

There is also no "boot manual" command; you have to change the configuration register from within IOS to boot into ROMMON.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
Router#show version | include Configuration register
Configuration register is 0x2102

Router#configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.
Router(config)#config-register 0x0
Router(config)#end

Router#show version | include Configuration register
Configuration register is 0x2102 (will be 0x0 at next reload)

Router#reload

System configuration has been modified. Save? [yes/no]: no          <--- I won't save the "boot system" command for now
Proceed with reload? [confirm]                                      <--- press <Enter>

We're in ROMMON-mode.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
System Bootstrap, Version 15.0(1r)M16, RELEASE SOFTWARE (fc1)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 2012 by cisco Systems, Inc.

Total memory size = 512 MB - On-board = 512 MB, DIMM0 = 0 MB
CISCO1941/K9 platform with 524288 Kbytes of main memory
Main memory is configured to 64/-1(On-board/DIMM0) bit mode with ECC disabled


Readonly ROMMON initialized
rommon 1 >

To return to IOS, you have 2 options. Either

  • first set the configuration register back to its initial value from within ROMMON and then boot into IOS (fastest)
  • boot into IOS, set the configuration register back to its initial value from within IOS and reload again (slowest)
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
# option1
rommon 1 > confreg 0x2102

You must reset or power cycle for new config to take effect

rommon 2 > reset
...
Router#

# option2
rommon 1 > boot
program load complete, entry point: 0x80803000, size: 0x1b340
program load complete, entry point: 0x80803000, size: 0x1b340
...

Router#show version | include Configuration register
Configuration register is 0x0

Router#configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.
Router(config)#config-register 0x2102
Router(config)#end

Router#show ver | include Configuration register
Configuration register is 0x0 (will be 0x2102 at next reload)

Router#reload
...

Missing or corrupt IOS

Let's simulate a non-working IOS by "accidently" erasing the "flash" filesystem. You cannot use the "erase (/all) flash:" command like with a Cisco 2960 switch. You have to "format" it. Restart the router afterwards.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
Router#format flash:
Format operation may take a while. Continue? [confirm]
Format operation will destroy all data in "flash:".  Continue? [confirm]
Writing Monlib sectors.....
Monlib write complete

Format: All system sectors written. OK...

Format: Total sectors in formatted partition: 501728
Format: Total bytes in formatted partition: 256884736
Format: Operation completed successfully.

Format of flash0: complete

Router#dir flash:
Directory of flash0:/

No files in directory

256475136 bytes total (256475136 bytes free)

Router#reload
...

The router will not be able to boot and will enter ROMMON-mode automatically.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
System Bootstrap, Version 15.0(1r)M16, RELEASE SOFTWARE (fc1)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 2012 by cisco Systems, Inc.

Total memory size = 512 MB - On-board = 512 MB, DIMM0 = 0 MB
CISCO1941/K9 platform with 524288 Kbytes of main memory
Main memory is configured to 64/-1(On-board/DIMM0) bit mode with ECC disabled


Readonly ROMMON initialized
program load complete, entry point: 0x80803000, size: 0x1b340
boot: cannot determine first executable file name ondevice "flash0:"
...
...
rommon 1 >

Break sequence

To my knowledge, there is no break sequence mechanism on a Cisco 1941 router like there is on a Cisco 2960 switch. There is no such thing as "boot enable-break" to en/disable the break sequence behavior. Just poower cycle the router or "reload" from within a running IOS.

1
2
3
4
Router#reload
Proceed with reload? [confirm]

*Mar 16 14:04:39.603: %SYS-5-RELOAD: Reload requested by console. Reload Reason: Reload Command.

Immediately after the router starts booting (within the first X seconds), send the break sequence from your terminal emulator. For Minicom, press Ctrl + A then F. The router should respond by stopping the boot process and entering ROMMON mode, indicated by the rommon X> prompt.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
System Bootstrap, Version 15.0(1r)M16, RELEASE SOFTWARE (fc1)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 2012 by cisco Systems, Inc.

Total memory size = 512 MB - On-board = 512 MB, DIMM0 = 0 MB
### I sent the break signal about here ###
CISCO1941/K9 platform with 524288 Kbytes of main memory
Main memory is configured to 64/-1(On-board/DIMM0) bit mode with ECC disabled


Readonly ROMMON initialized
rommon 1 >

Cold start

There is no "MODE button" like with a Cisco 2960 switch to interrupt the boot sequence with.
